Mechanical adaptors for punches

joiners

Note: The clamp is not included in the kit.

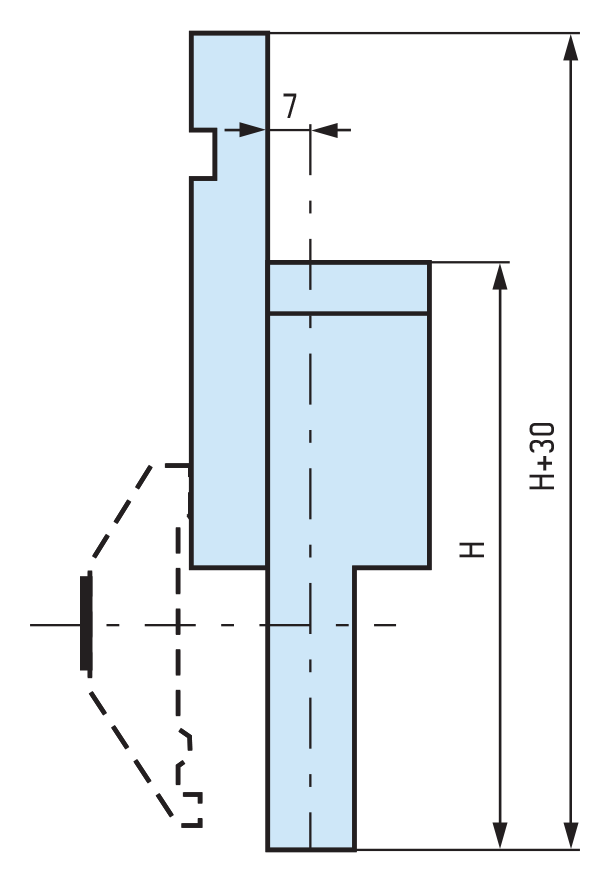

TYPE ”A”

H=100 mm, L=150 mm

H=120 mm, L=150 mm

H=140 mm, L=150 mm

H=150 mm, L=150 mm

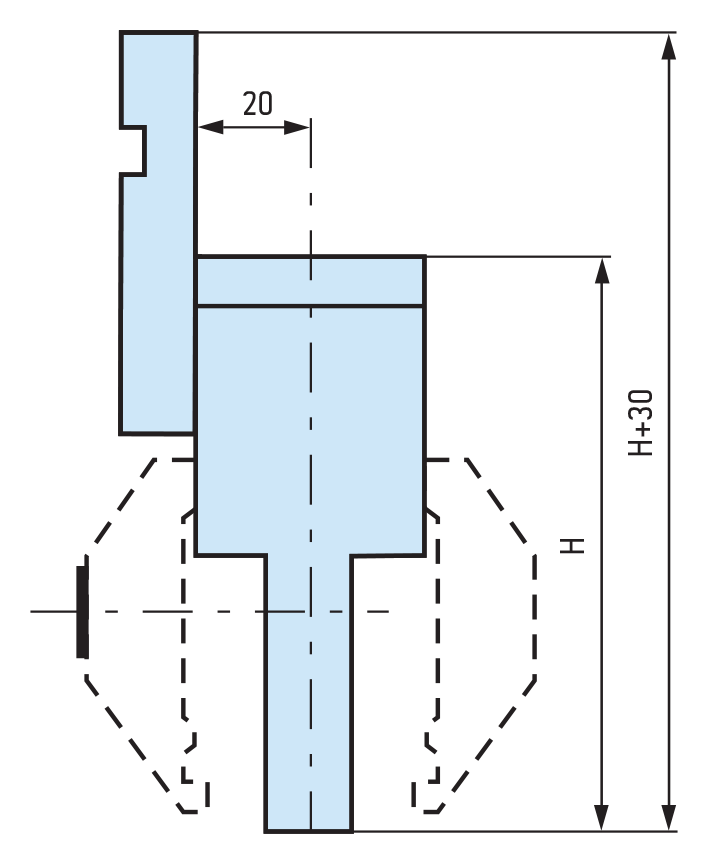

TYPE ”B”

H=120 mm, L=150 mm

H=170 mm, L=150 mm

clamping washers

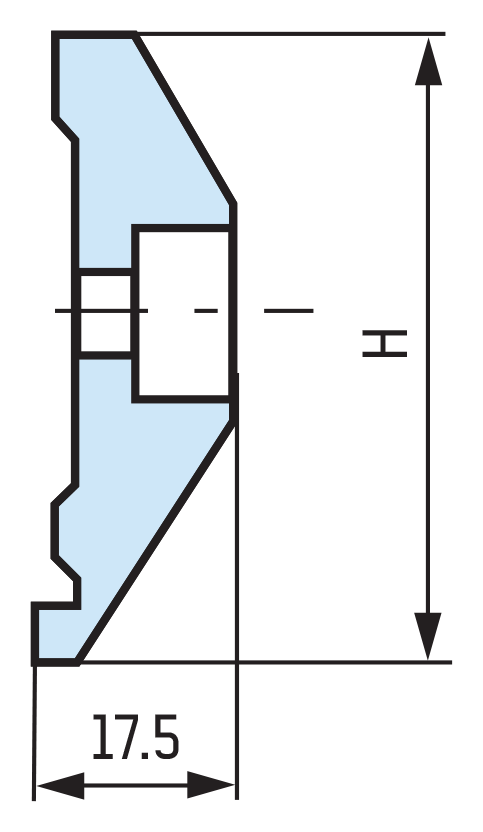

TYPE ”S”

H=58 mm, L=150 mm

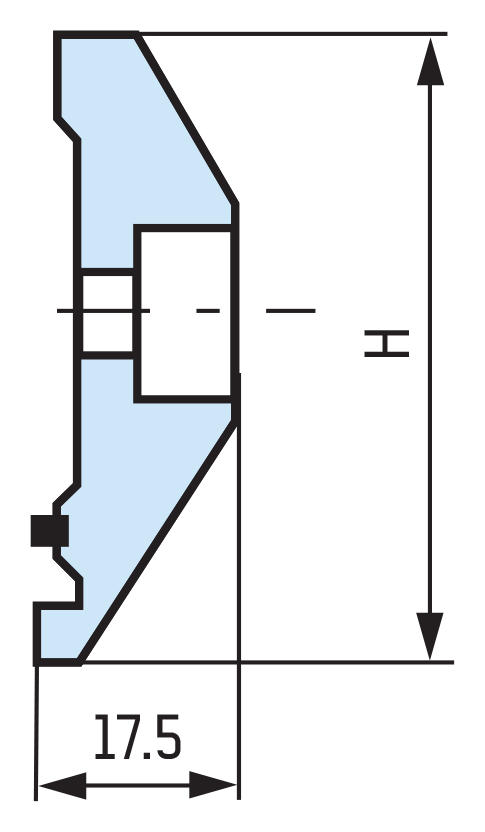

TYPE ”P”

with plastic insert

H=58 mm, L=150 mm

type ”T“ adaptor

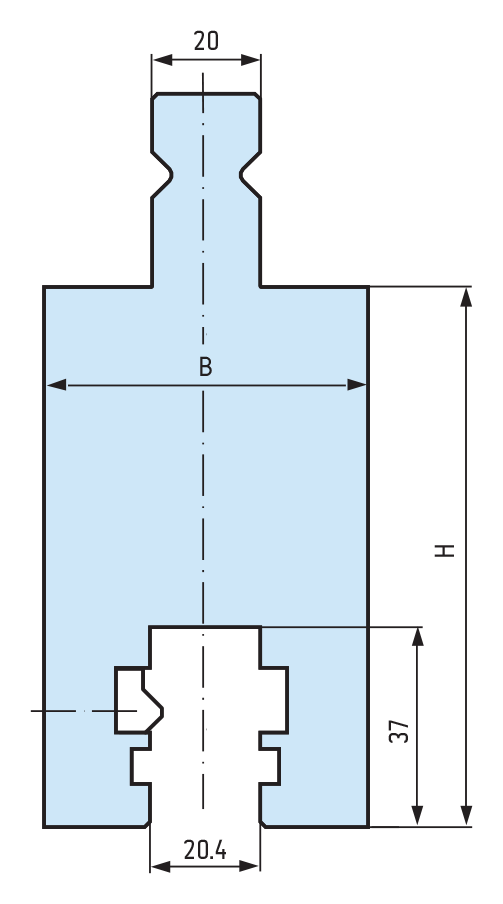

TYPE ”T/T”

H=100 mm, L=100 mm, B=55 mm

H=150 mm, L=100 mm, B=60 mm

system changing adaptors

TYPE ”A/T”

H=100 mm, L=100 mm
