Matryce typu „A” - Plasmet producent narzędzi do pras krawędziowych

wielorowkowe

MR100 t/m

M 480 t/m

α = 85°, 88°

M 480 t/m

α = 85°, 88°

M 4/85°80 t/m

α = 85°

M 4/60°60 t/m

α = 60°

M 2/6 – 10100 t/m

α = 90°

M 2/8 – 1280 t/m

α = 90°

rowkowe

M 601980 t/m

α = 90°

M 611980 t/m

α = 88°

M 602080 t/m

α = 90°

M 612080 t/m

α = 88°

M 622035 t/m*

α = 30°

M 602180 t/m

α = 90°

M 612180 t/m

α = 88°

M 622140 t/m*

α = 30°

M 602280 t/m

α = 90°

M 612280 t/m

α = 88°

M 602380 t/m

α = 90°

M 612380 t/m

α = 88°

M 602480 t/m

α = 90°

M 612480 t/m

α = 88°

matryce 1V

M 3330/18100 t/m

α = 30°

V = 18 mm

M 3330/25100 t/m

α = 30°

V = 25 mm

M 3345/32100 t/m

α = 45°

V = 32 mm

M 3345/40100 t/m

α = 45°

V = 40 mm

M 3360/50100 t/m

α = 60°

V = 50 mm

M 3360/63100 t/m

α = 60°

V = 63 mm

M 3385/32100 t/m

α = 85°

V = 32 mm

M 3385/40100 t/m

α = 85°

V = 40 mm

M 3385/50100 t/m

α = 85°

V = 50 mm

M 3385/63100 t/m

α = 85°

V = 63 mm

M 3385/80 *100 t/m

α = 85°

V = 80 mm

* od 1 stycznia 2014 zmieniona wysokość

M 3385/100 *100 t/m

α = 85°

V = 100 mm

* od 1 stycznia 2014 zmieniona wysokość

M 3385/80 *

α = 85°

V = 80 mm

* poprzednio oferowana wysokość,
dostępna na zamówienie

M 3385/100 *

α = 85°

V = 100 mm

* poprzednio oferowana wysokość,
dostępna na zamówienie

M 3380/125100 t/m

α = 80°

V = 125 mm

H = 123 mm

M 3380/160100 t/m*

α = 80° *

V = 160 mm *

H = 130 mm *

mocowane śrubami

M 6112100 t/m

α = 90°

M 621260 t/m

α = 60°

M 6113100 t/m

α = 90°

M 621380 t/m

α = 60°

M 631230 t/m

α = 35°

M 631330 t/m

α = 35°

M 6114100 t/m

α = 88°

M 621480 t/m*

α = 60°

M 6115100 t/m

α = 88°

M 621580 t/m*

α = 60°

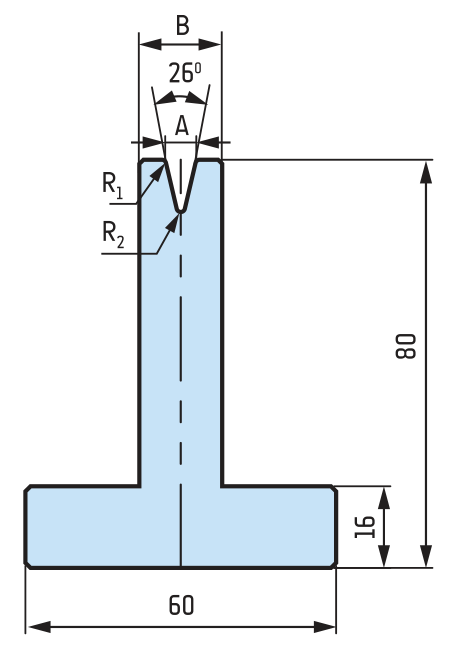

matryce z podstawą H = 80 mm

M 613030 t/m

A = 8 mm, B = 16 mm

R₁ = 1 mm, R₂ = 1 mm

M 623035 t/m

A = 10 mm, B = 20 mm

R₁ = 1 mm, R₂ = 1 mm

M 633035 t/m

A = 12 mm, B = 22 mm

R₁ = 1 mm, R₂ = 1 mm

M 6430 45 t/m

A = 16 mm, B = 30 mm

R₁ = 2 mm, R₂ = 2mm

M 653030 t/m

A = 6 mm, B = 14 mm

R₁ = 0.8 mm, R₂ = 0.8 mm

M 6630 50 t/m

A = 20 mm, B = 35 mm

R₁ = 4 mm, R₂ = 4 mm

M 613535 t/m

A = 8 mm, B = 14 mm

R₁ = 1.5 mm, R₂ = 0.8 mm

M 623540 t/m

A = 12 mm, B = 18 mm

R₁ = 2 mm, R₂ = 1 mm

M 614550 t/m

A = 10 mm, B = 16 mm

R₁ = 2 mm, R₂ = 1 mm

M 624550 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 616060 t/m

A = 8 mm, B = 14 mm

R₁ = 1.5 mm, R₂ = 0.8 mm

M 626060 t/m

A = 10 mm, B = 16 mm

R₁ = 2 mm, R₂ = 1 mm

M 636060 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 646060 t/m

A = 16 mm, B = 24 mm

R₁ = 1.5 mm, R₂ = 1.5 mm

M 656060 t/m

A = 20 mm, B = 30 mm

R₁ = 2 mm, R₂ = 2 mm

M 666060 t/m

A = 25 mm, B = 40 mm

R₁ = 3 mm, R₂ = 3 mm

M 6085100 t/m

A = 8 mm, B = 14 mm

R₁ = 1 mm, R₂ = 0.5 mm

M 6185100 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 6285100 t/m

A = 16 mm, B = 24 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 6385100 t/m

A = 20 mm, B = 30 mm

R₁ = 3 mm, R₂ = 1.5 mm

M 6485100 t/m

A = 25 mm, B = 40 mm

R₁ = 3 mm, R₂ = 3 mm

M 6585100 t/m

A = 10 mm, B = 18 mm

R₁ = 1 mm, R₂ = 1 mm

M 6685100 t/m

A = 14 mm, B = 18 mm

R₁ = 2.6 mm, R₂ = 0.4 mm

M 6785100 t/m

A = 6 mm, B = 14 mm

R₁ = 0.5 mm, R₂ = 0.5 mm

M 6088100 t/m

A = 8 mm, B = 14 mm

R₁ = 1 mm, R₂ = 0.5 mm

M 6188100 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 6288100 t/m

A = 16 mm, B = 24 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 6388100 t/m

A = 20 mm, B = 30 mm

R₁ = 3 mm, R₂ = 1.5 mm

M 6488100 t/m

A = 25 mm, B = 40 mm

R₁ = 3 mm, R₂ = 3 mm

M 6588100 t/m

A = 10 mm, B = 18 mm

R₁ = 1 mm, R₂ = 1 mm

M 6688100 t/m

A = 14 mm, B = 18 mm

R₁ = 2.6 mm, R₂ = 0.4 mm

M 6788100 t/m

A = 6 mm, B = 14 mm

R₁ = 0.5 mm, R₂ = 0.5 mm

M 6190100 t/m

A = 6 mm, B = 12 mm

R₁ = 1.5 mm, R₂ = 0.5 mm

M 6290100 t/m

A = 8 mm, B = 14 mm

R₁ = 1.5 mm, R₂ = 0.8 mm

M 6390100 t/m

A = 10 mm, B = 16 mm

R₁ = 2 mm, R₂ = 1 mm

M 6490100 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1.5 mm

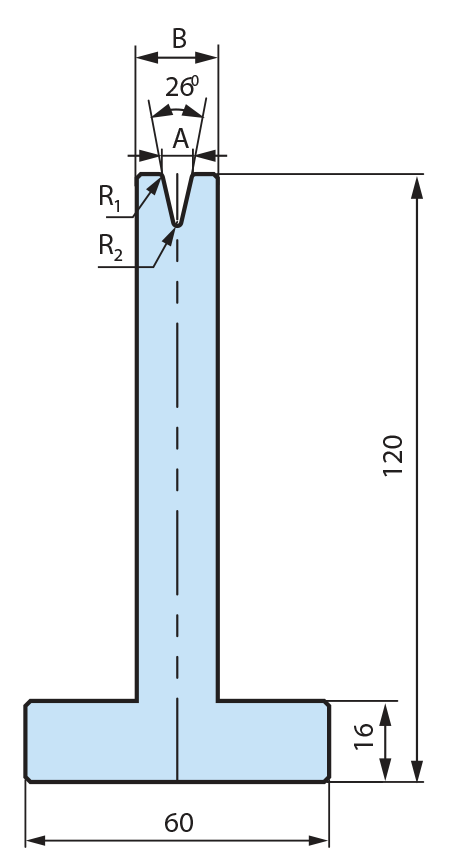

matryce z podstawą H = 120 mm

M 913030 t/m

A = 8 mm, B = 18 mm

R₁ = 1 mm, R₂ = 1 mm

M 923035 t/m

A = 10 mm, B = 24 mm

R₁ = 1 mm, R₂ = 1 mm

M 933035 t/m

A = 12 mm, B = 24 mm

R₁ = 1 mm, R₂ = 1 mm

M 943045 t/m

A = 16 mm, B = 30 mm

R₁ = 2 mm, R₂ = 2 mm

M 953030 t/m

A = 6 mm, B = 14 mm

R₁ = 0.8 mm, R₂ = 0.8 mm

M 963050 t/m

A = 20 mm, B = 35 mm

R₁ = 4 mm, R₂ = 4 mm

M 913535 t/m

A = 8 mm, B = 18 mm

R₁ = 1.5 mm, R₂ = 0.8 mm

M 923540 t/m

A = 12 mm, B = 18 mm

R₁ = 2 mm, R₂ = 1 mm

M 914550 t/m

A = 10 mm, B = 18 mm

R₁ = 2 mm, R₂ = 1 mm

M 924550 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 916060 t/m

A = 8 mm, B = 14 mm

R₁ = 1.5 mm, R₂ = 0.8 mm

M 926060 t/m

A = 10 mm, B = 18 mm

R₁ = 2 mm, R₂ = 1 mm

M 936060 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 946060 t/m

A = 16 mm, B = 24 mm

R₁ = 1.5 mm, R₂ = 1.5 mm

M 956060 t/m

A = 20 mm, B = 30 mm

R₁ = 2 mm, R₂ = 2 mm

M 966060 t/m

A = 25 mm, B = 40 mm

R₁ = 3 mm, R₂ = 3 mm

M 9085100 t/m

A = 8 mm, B = 14 mm

R₁ = 1 mm, R₂ = 0.5 mm

M 9185100 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 9285100 t/m

A = 16 mm, B = 24 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 9385100 t/m

A = 20 mm, B = 30 mm

R₁ = 3 mm, R₂ = 1.5 mm

M 9485100 t/m

A = 25 mm, B = 40 mm

R₁ = 3 mm, R₂ = 3 mm

M 9585100 t/m

A = 10 mm, B = 18 mm

R₁ = 1 mm, R₂ = 1 mm

M 9685100 t/m

A = 14 mm, B = 18 mm

R₁ = 2.6 mm, R₂ = 0.4 mm

M 9785100 t/m

A = 6 mm, B = 14 mm

R₁ = 0.5 mm, R₂ = 0.5 mm

M 9088100 t/m

A = 8 mm, B = 14 mm

R₁ = 1 mm, R₂ = 0.5 mm

M 9188100 t/m

A = 12 mm, B = 18 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 9288100 t/m

A = 16 mm, B = 24 mm

R₁ = 2.5 mm, R₂ = 1 mm

M 9388100 t/m

A = 20 mm, B = 30 mm

R₁ = 3 mm, R₂ = 1.5 mm

M 9488100 t/m

A = 25 mm, B = 40 mm

R₁ = 3 mm, R₂ = 3 mm

M 9588100 t/m

A = 10 mm, B = 18 mm

R₁ = 1 mm, R₂ = 1 mm

M 9688100 t/m

A = 14 mm, B = 18 mm

R₁ = 2.6 mm, R₂ = 0.4 mm

M 9788100 t/m

A = 6 mm, B = 14 mm

R₁ = 0.5 mm, R₂ = 0.5 mm

M 9190100 t/m

A = 6 mm, B = 14 mm

R₁ = 1.5 mm, R₂ = 0.5 mm

M 9290100 t/m

A = 8 mm, B = 14 mm

R₁ = 1.5 mm, R₂ = 0.8 mm

M 9390100 t/m

A = 10 mm, B = 18 mm

R₁ = 2 mm, R₂ = 1 mm

M 9490100 t/m

A = 12 mm, B = 18 mm

R₁ = 3 mm, R₂ = 0.8 mm

matryce wkładkowe

Matryce montowane przy pomocy wkładek A31 lub A61

M 813035 t/m

A = 6 mm, B = 16 mm

α = 30°

M 823035 t/m

A = 8 mm, B = 19 mm

α = 30°

M 833050 t/m

A = 10 mm, B = 24 mm

α = 30°

M 843040 t/m

A = 12 mm, B = 25 mm

α = 30°

M 816060 t/m

A = 6 mm, B = 14 mm

α = 60°

M 826060 t/m

A = 8 mm, B = 15 mm

α = 60°

M 836060 t/m

A = 10 mm, B = 18 mm

α = 60°

M 846060 t/m

A = 12 mm, B = 18 mm

α = 60°

M 856060 t/m

A = 16 mm, B = 24 mm

α = 60°

M 866060 t/m

A = 20 mm, B = 30 mm

α = 60°

M 876060 t/m

A = 25 mm, B = 33 mm

α = 60°

M 8188100 t/m

A = 6 mm, B = 14 mm

α = 88°

M 8288100 t/m

A = 8 mm, B = 14 mm

α = 88°

M 8388100 t/m

A = 10 mm, B = 15 mm

α = 88°

M 8488100 t/m

A = 12 mm, B = 17 mm

α = 88°

M 8588100 t/m

A = 14 mm, B = 18 mm

α = 88°

M 8688100 t/m

A = 16 mm, B = 21 mm

α = 88°

M 8788100 t/m

A = 18 mm, B = 23 mm

α = 88°

M 8888100 t/m

A = 20 mm, B = 25 mm

α = 88°

M 8988100 t/m

A = 25 mm, B = 30 mm

α = 88°

M 8190100 t/m

A = 6 mm, B = 14 mm

α = 90°

M 8290100 t/m

A = 8 mm, B = 14 mm

α = 90°

M 8390100 t/m

A = 10 mm, B = 15 mm

α = 90°

M 8490100 t/m

A = 12 mm, B = 17 mm

α = 90°

M 8590100 t/m

A = 14 mm, B = 18 mm

α = 90°

matryce do zagniatania

Matryce dwufunkcyjne do gięcia i zagniatania. Górna część porusza się na sprężynach.

M 3033/660 t/m

α = 35°

V = 6 mm

M 3033/880 t/m

α = 30°

V = 8 mm

M 3033/10100 t/m

α = 26°

V = 10 mm

M 3033/12100 t/m

α = 26°

V = 12 mm

matryce z wkładkami

WKŁADKA W 2420 t/m

B = 14 mm, H = 15 mm, A = 24 mm

α = 35°, V = 6 mm / 8 mm / 10 mm

α = 45°, V = 6 mm / 8 mm / 10 mm / 12 mm

α = 60°, V = 6 mm / 8 mm / 10 mm / 12 mm / 16 mm

α = 88°, V = 6 mm / 8 mm / 10 mm / 12 mm / 16 mm

WKŁADKA W 3520 t/m

B = 20 mm, H = 19 mm, A = 35 mm

α = 35°, V = 6 mm / 8 mm / 10 mm

α = 45°, V = 6 mm / 8 mm / 10 mm / 12 mm

α = 60°, V = 6 mm / 8 mm / 10 mm / 12 mm /
16 mm / 20 mm

α = 88°, V = 6 mm / 8 mm / 10 mm / 12 mm /
16 mm / 20 mm / 25 mm

WKŁADKA W 3820 t/m

B = 30 mm, H=19 mm, A = 38 mm

α = 30°, V = 6 mm / 8 mm / 10 mm / 12 mm /
16 mm

α = 60°, V = 6 mm / 8 mm / 10 mm / 12 mm /
16 mm / 20 mm

α = 88°, V = 6 mm / 8 mm / 10 mm / 12 mm /
16 mm / 20 mm / 25 mm

* dla W 38

KORPUS W 24 / W 35 / W 38

KORPUS W 50

WKŁADKA 50 PEŁNA

WKŁADKA 50 Z OTWOREM

KORPUS W 75

Wkładki poliamidowe pozwalają zminimalizować ślady przy gięciu cienkich blach pokrywanych lub nierdzewnych.

KORPUS W 100

WKŁADKA 75 PEŁNA

WKŁADKA 100 PEŁNA

WKŁADKA 75 Z OTWOREM

WKŁADKA 100 Z OTWOREM
