100 mm

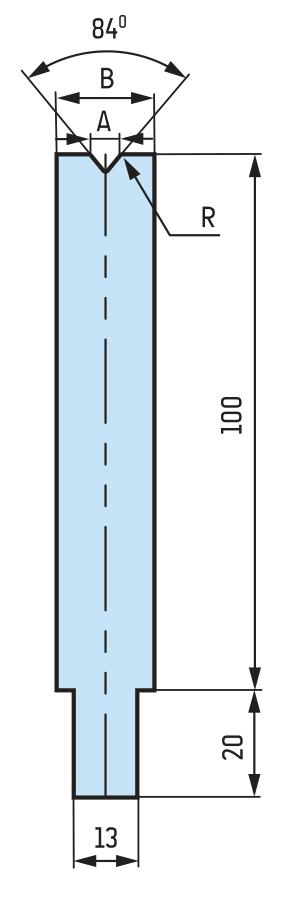

M 7106/84100 t/m
A = 6 mm, B = 20 mm
R1 = 0.6 mm, R2 = 0.6 mm
M 7108/84100 t/m
A = 8 mm, B = 20 mm
R1 = 0.8 mm, R2 = 0.8 mm
M 7110/84100 t/m
A = 10 mm, B = 20 mm
R1 = 1 mm, R2 = 1 mm
M 7112/84100 t/m
A = 12 mm, B = 25 mm
R1 = 1 mm, R2 = 1 mm
M 7116/84100 t/m
A = 16 mm, B = 30 mm
R1 = 1.6 mm, R2 = 1.6 mm
M 7120/84100 t/m
A = 20 mm, B = 30 mm
R1 = 2 mm, R2 = 2 mm

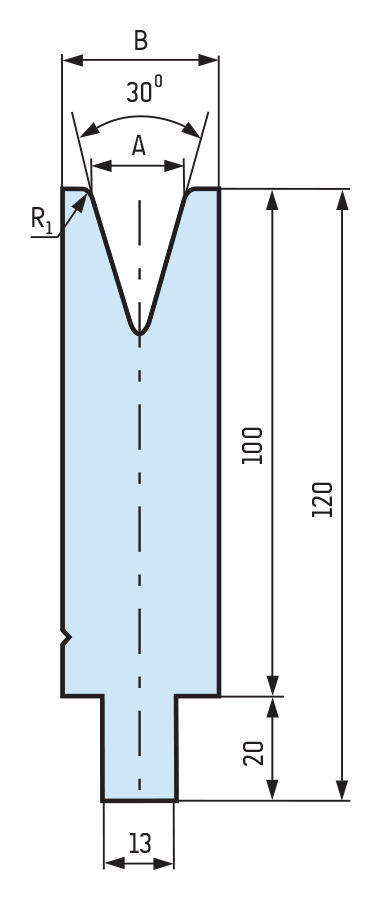

M 7106100 t/m
A = 6 mm, B = 20 mm
R1 = 0.6 mm
M 7108100 t/m
A = 8 mm, B = 20 mm
R1 = 0.8 mm
M 7110100 t/m
A = 10 mm, B = 20 mm
R1 = 1 mm
M 7112100 t/m
A = 12 mm, B = 25 mm
R1 = 1 mm
M 7116100 t/m
A = 16 mm, B = 30 mm
R1 = 1.6 mm
M 7120100 t/m
A = 20 mm, B = 30 mm
R1 = 2 mm
M 7124100 t/m
A = 24 mm, B = 35 mm
R1 = 2.5 mm
M 7130100 t/m
A = 30 mm, B = 45 mm
R1 = 3 mm
M 7140100 t/m
A = 40 mm, B = 55 mm
R1 = 3 mm
M 7150100 t/m
A = 50 mm, B = 75 mm
R1 = 3 mm

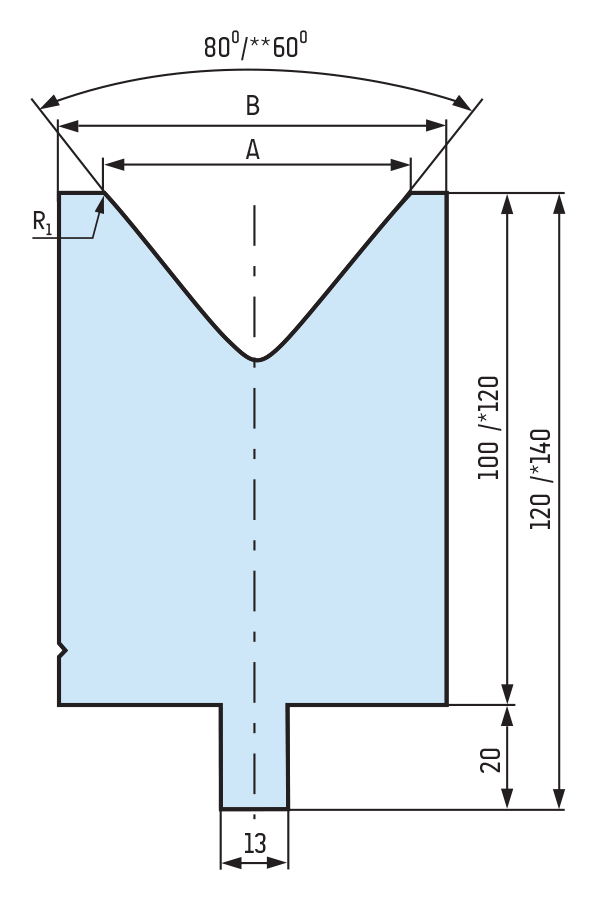

M 7224100 t/m
A = 24 mm, B = 35 mm
R1 = 2.5 mm
M 7230100 t/m
A = 30 mm, B = 45 mm
R1 = 5 mm
M 7240120 t/m
A = 40 mm, B = 55 mm
R1 = 5 mm
M 7250150 t/m
A = 50 mm, B = 65 mm
R1 = 5 mm
M 7260150 t/m
A = 60 mm, B = 75 mm
R1 = 5 mm
M 7280150 t/m
A = 80 mm, B = 100 mm
R1 = 5 mm
M 7290150 t/m*
A = 90 mm, B = 110 mm
R1 = 8 mm
M 72100150 t/m*
A = 100 mm, B = 120 mm
R1 = 8 mm

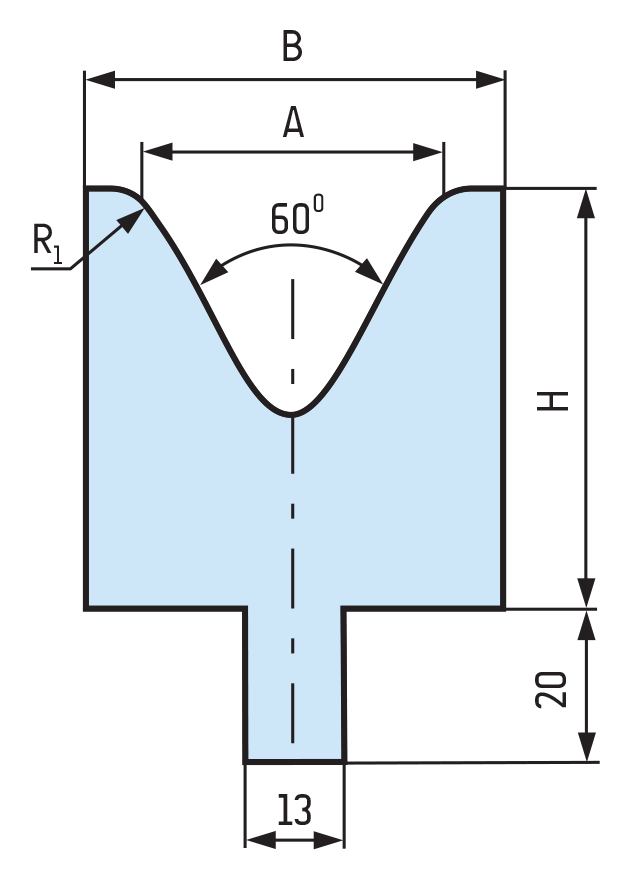

M 72120160 t/m**
A = 120 mm, B = 145 mm
H = 120 mm
α = 60°
R1 = 8 mm

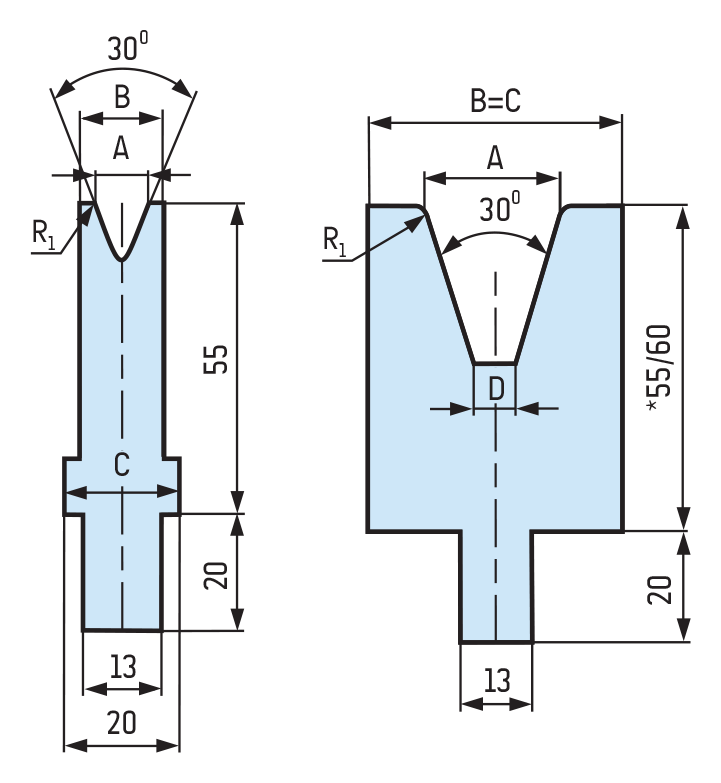

M 730650 t/m
A = 6 mm, B = 20 mm
R1 = 0.6 mm
M 730840 t/m
A = 8 mm, B = 20 mm
R1 = 1 mm
M 731040 t/m
A = 10 mm, B = 20 mm
R1 = 1 mm
M 731240 t/m
A = 12 mm, B = 25 mm
R1 = 1 mm
M 731650 t/m
A = 16 mm, B = 30 mm
R1 = 1.6 mm
M 732060 t/m
A = 20 mm, B = 35 mm
R1 = 2 mm
M 732465 t/m
A = 24 mm, B = 40 mm
R1 = 2.5 mm
M 733090 t/m
A = 30 mm, B = 55 mm
R1 = 3 mm
matryce z wkładkami poliamidowymi

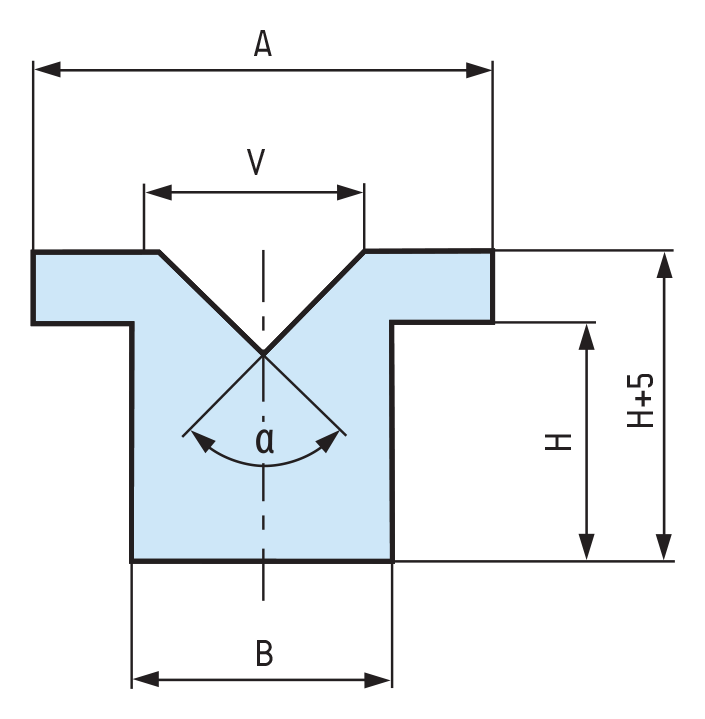

WKŁADKA W 35-T20 t/m
B = 20 mm, H = 19 mm, A = 35 mm
α = 35°, V = 6 mm / 8 mm / 10 mm
α = 45°, V = 6 mm / 8 mm / 10 mm / 12 mm
α = 60°, V = 6 mm / 8 mm / 10 mm / 12 mm / 16 mm / 20 mm
α = 88°, V = 6 mm / 8 mm / 10 mm / 12 mm / 16 mm / 20 mm / 25 mm

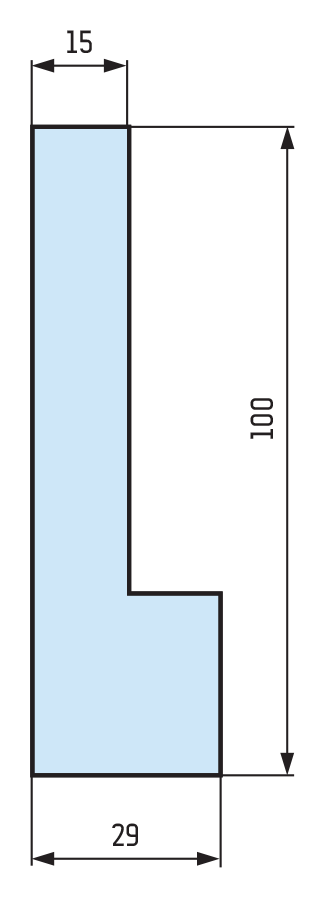

KORPUS W 35-T
